ADDAC Systems - 005 CV 2 Expression
€85.00
Net: €71.43
Pre Order

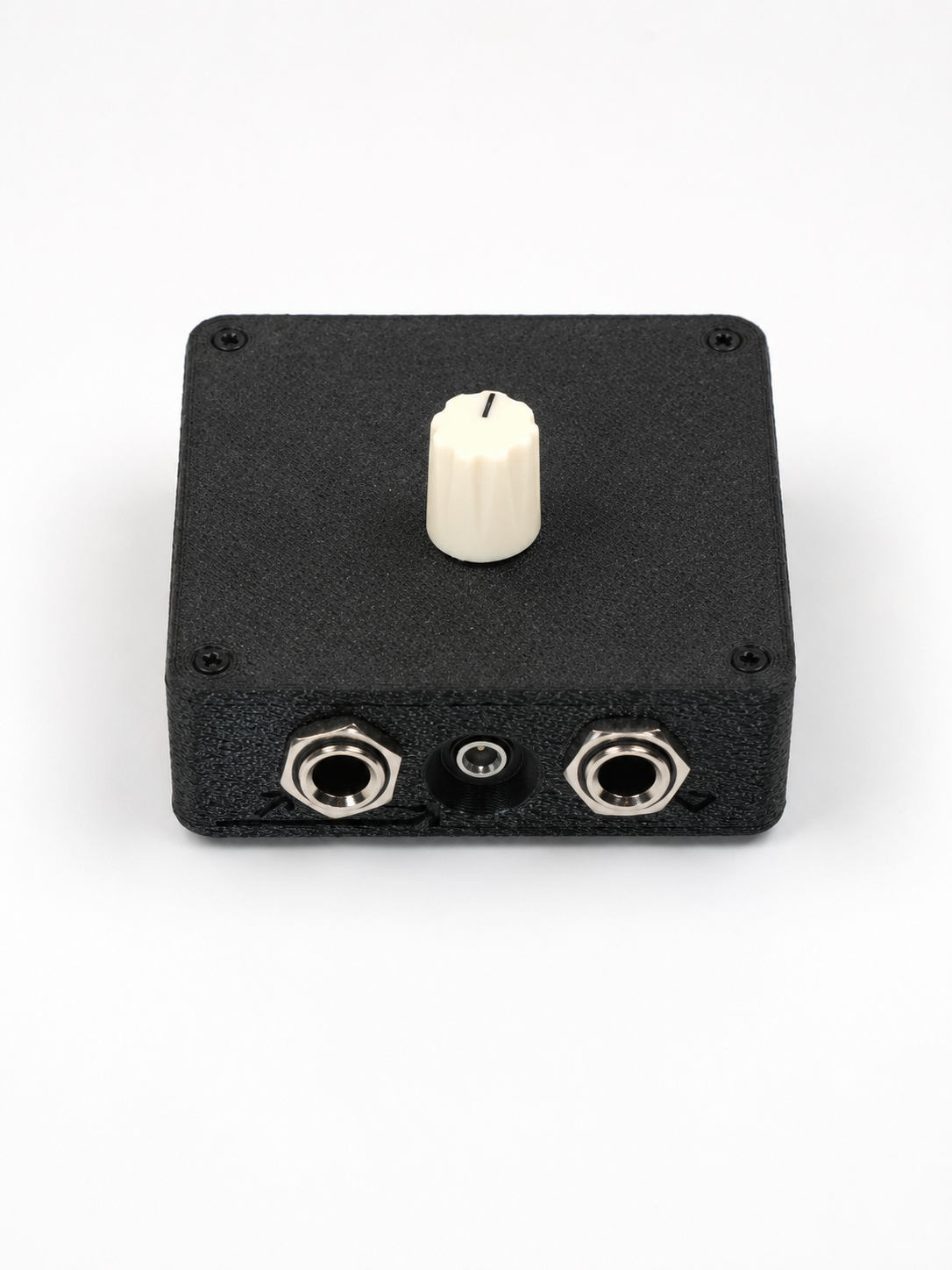

ADDAC005 CV 2 Expression — CV Control For Your Expression Pedals
ADDAC005 CV 2 Expression is a small standalone box that lets modular and other CV sources control the expression input of an effects pedal. Patch CV into either the 3.5 mm or 1/4" input, connect the TRS output to the pedal, and parameters normally assigned to an expression pedal can now follow envelopes, LFOs, sequencers or whatever else your patch is producing.
An attenuator sets the modulation range, and with no CV connected the same knob works as a manual expression control. The box is completely passive and takes its operating voltage from the connected pedal, so it automatically works with expression circuits running between 3.3 and 9 V. A simple little bridge between modular modulation and pedals that would usually need your foot.
Features:
- Standalone CV-to-expression converter
- Controls effects-pedal parameters via TRS expression inputs
- 3.5 mm CV input for Eurorack
- 1/4" CV input for larger-format synthesizers
- 1/4" TRS expression output
- Attenuator for setting CV modulation depth
- Attenuator works as a manual control with no CV connected
- 3.5 mm input takes priority when both inputs are patched
- Passive operation, powered from the connected pedal
- Supports expression voltages from 3.3 to 9 V
- Dimensions: 70 × 65 × 50 mm
