midiphy - nexusMIDI
€189.00
Net: €158.82
In stock
| U | 3 |
| HP | 6 |
| Depth | 30 |
| +12V | 90 |
midiphy nexusMIDI — Four DIN MIDI Ports For zetaSID And Other phybus Modules
nexusMIDI is a MIDI expander for midiphy's phybus system, adding two full-size MIDI inputs and two MIDI outputs to connected modules such as the zetaSID. This lets you play a zetaSID setup from a regular MIDI keyboard or sequencer, sync its arpeggiators, LFOs and wave sequencers to MIDI clock, and use velocity, pitch bend and mod wheel as additional control sources. With several zetaSIDs connected, nexusMIDI also provides the MIDI side of the system's polyphonic operation.
The ports are routed internally over phybus, so you can virtually connect a MIDI input or output to compatible modules without adding more patch cables. zetaSID can also send its arpeggiator notes back out over MIDI, transfer patches via SysEx and stream SID files using the ASID protocol. In other words, nexusMIDI is what turns a cluster of zetaSIDs from a collection of CV/Gate voices into something much closer to a conventional MIDI polysynth.
Features:
- phybus MIDI expander for zetaSID and other compatible midiphy modules

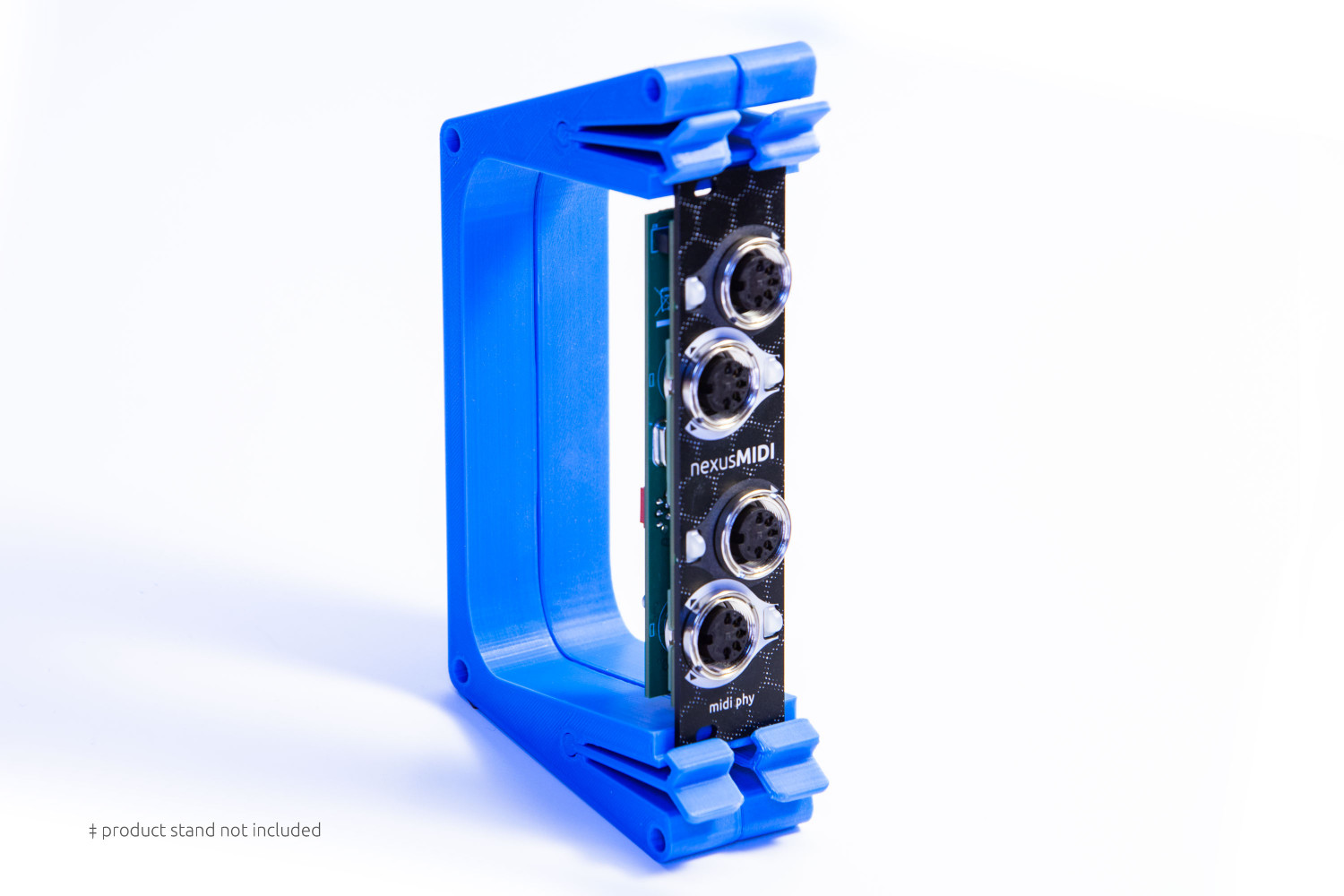

- Two 5-pin DIN MIDI inputs
- Two 5-pin DIN MIDI outputs
- Virtual MIDI routing over phybus
- Polyphonic MIDI control of multi-zetaSID setups
- MIDI clock sync
- Velocity, pitch bend and modulation-wheel support with zetaSID
- Sends zetaSID arpeggiator notes via MIDI
- SysEx patch transfer
- ASID SID-file playback support
- Status LEDs for all four MIDI ports
- Up to 15 nexusMIDI modules can be combined for 60 physical MIDI ports
- Maximum phybus network size: 16 modules
- phybus and Eurorack power cables included
