LINK 25 is a passive, bi-directional bridge between eight Eurorack patch points and a single analog DB-25 connection using the TASCAM/AES59 standard. That makes it a neat way to move four stereo pairs or eight mono channels between your modular system and an audio interface, mixer or recorder without running a small forest of individual cables across the studio. The direction is entirely up to you: send modular voices out for multitrack recording, bring line outputs back into the rack, or put a LINK 25 in two cases and carry eight channels between them over one multicore cable.

There is no active level conversion or amplification going on here — the signal path is passive and DC-coupled, with each channel electrically independent. The module also comes with both a 4HP 3U panel and a 22HP Intellijel-format 1U panel, and both can be flipped so the DB-25 cable exits in whichever direction makes more sense for your case. A simple piece of routing kit that makes multichannel connections between rack and studio gear far less messy.

Features:

• Passive eight-channel Eurorack to analog DB-25 adapter
• Bi-directional signal path
• Eight independent mono channels or four stereo pairs
• Eight unbalanced 3.5 mm TS connections
• Female DB-25 connector using the TASCAM analog / AES59 pinout
• Suitable for connecting Eurorack to audio interfaces, mixers, converters and recorders
• Two LINK 25 modules can connect two Eurorack cases over a single DB-25 cable
• Passive, DC-coupled signal path
• Audio recommended; CV, gates and clocks can also pass electrically
• No input/output switches — direction is determined by the connected equipment

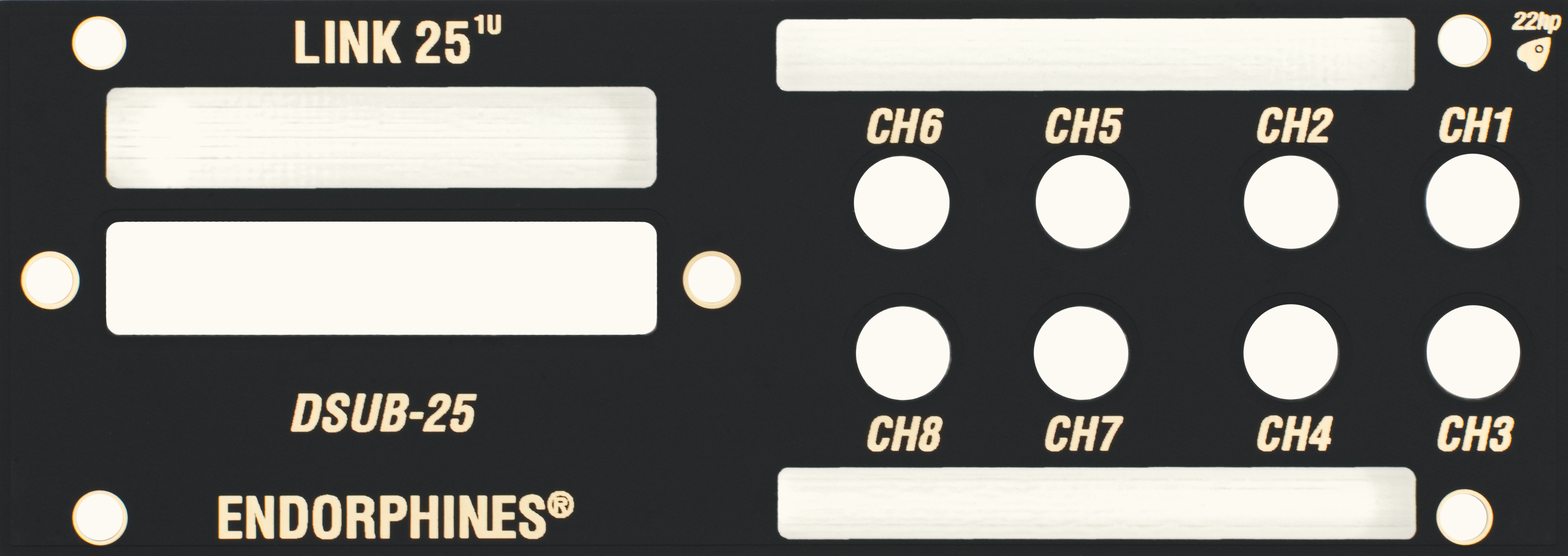

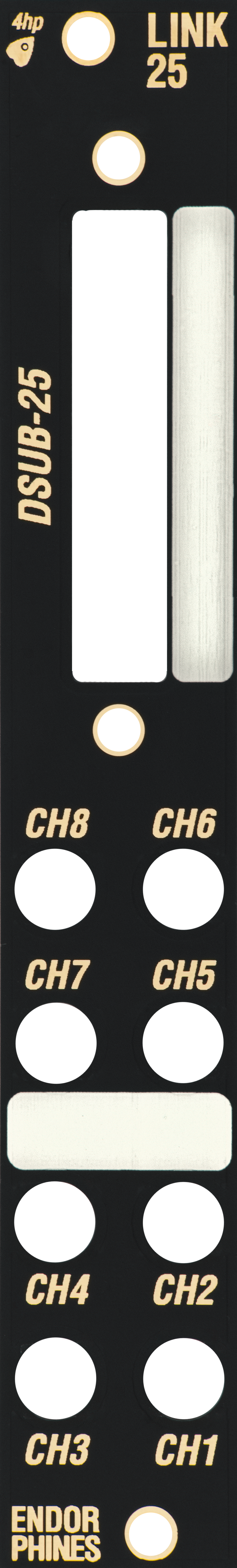

• Includes reversible 3U, 4HP panel

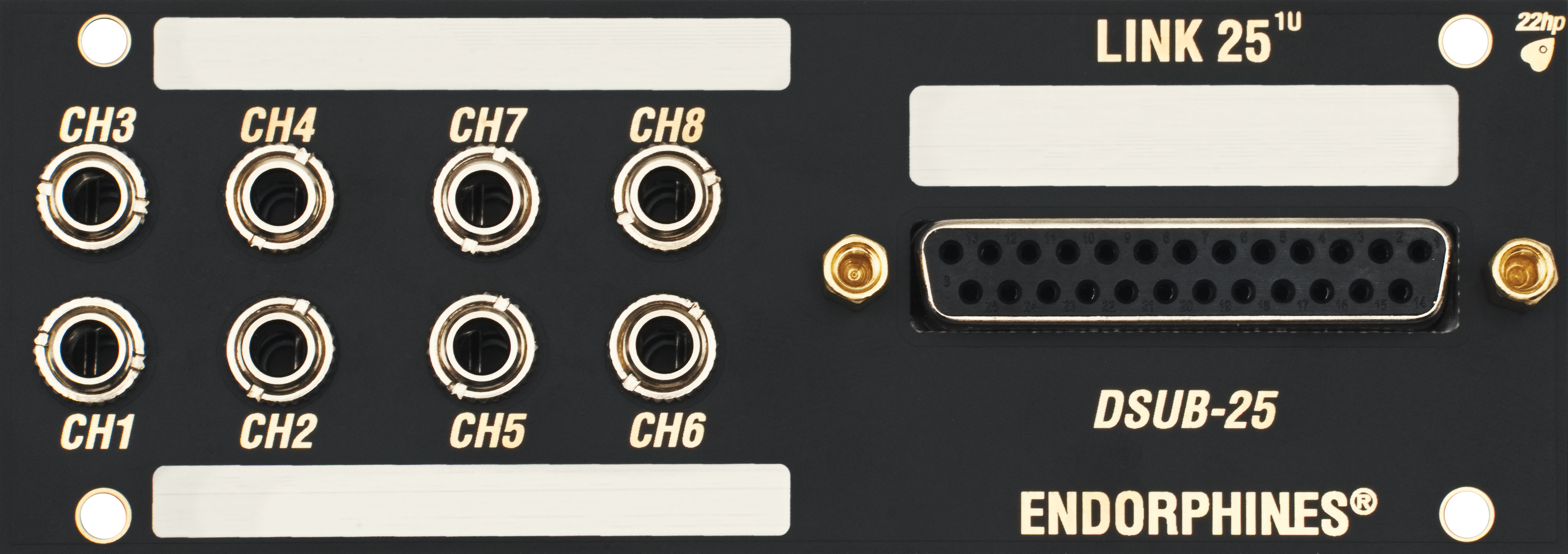

• Includes reversible 1U Intellijel-format, 22HP panel

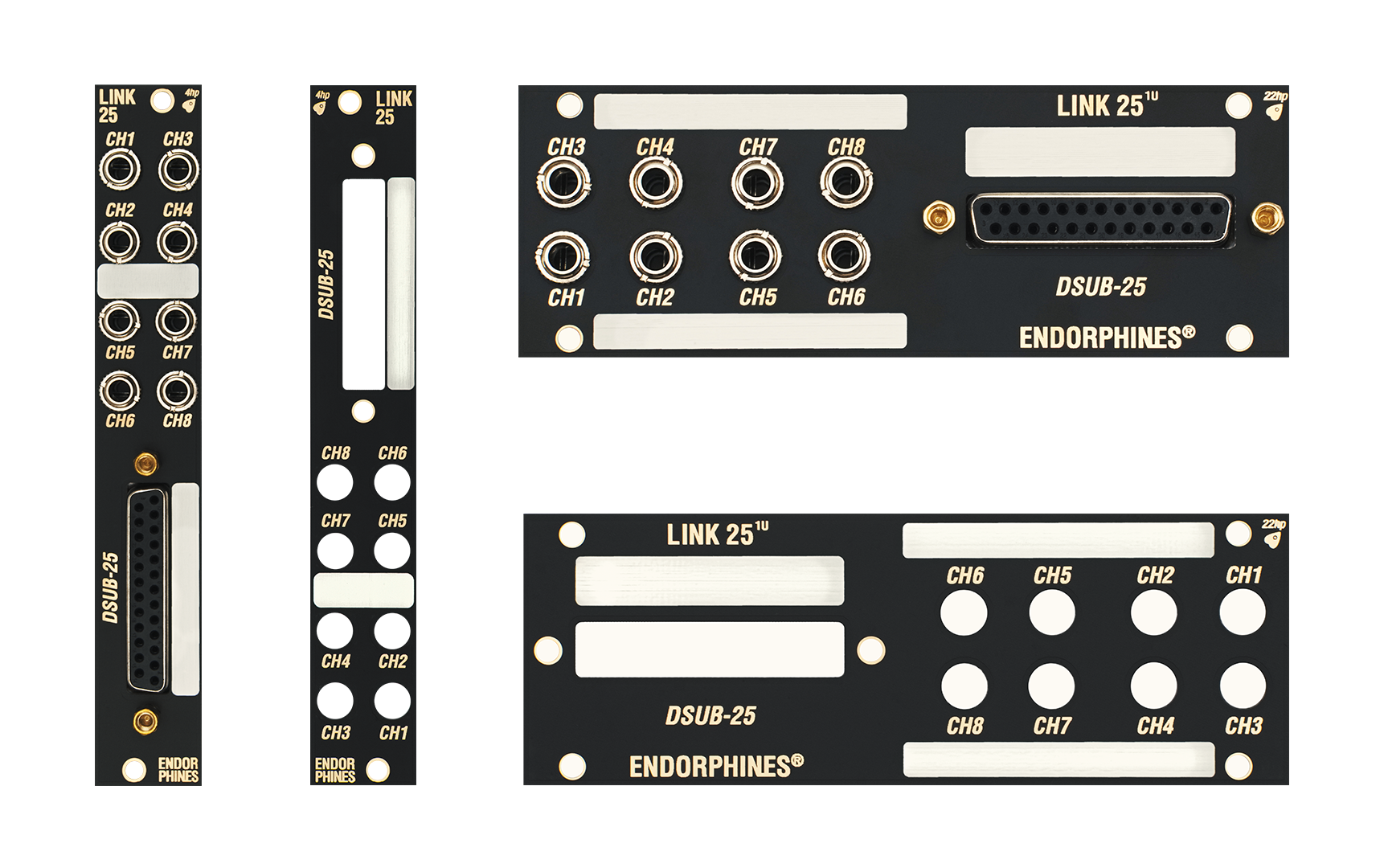

• DB-25 position can be oriented up/down in 3U or left/right in 1U
• Write-on areas for DB-25 destination and individual channel labels
• Compatible with ENDORPHIN.ES Airline Audio Jack Adapter and other 12.7 mm dual-plug stereo adapters
• No power required
• Approx. 15 mm deep
• DB-25 cable not included
• For analog TASCAM/AES59 DB-25 connections only — not compatible with TDIF, AES3/AES-EBU or Yamaha-wired DB-25 ports
• Phantom power must not be applied to LINK 25

Important notes:

• Analog audio DB-25 only: Do not connect LINK 25 to TDIF, AES3/AES-EBU digital, Yamaha-wired or computer DB-25 ports.
• Never apply phantom power: Use analog line-level connections only. Do not connect LINK 25 to microphone inputs while phantom power is enabled.
• One source per channel: Because the signal path is passive, never connect active outputs to both ends of the same channel. LINK 25 is not a summing mixer.
