Doepfer - A-138-6 1U Six Channel Mixer
€100.00
Net: €84.03
In stock
| U | 1 |
| HP | 28 |
| Depth | 45 |
| +12V | 20mA |
| –12V | 20mA |

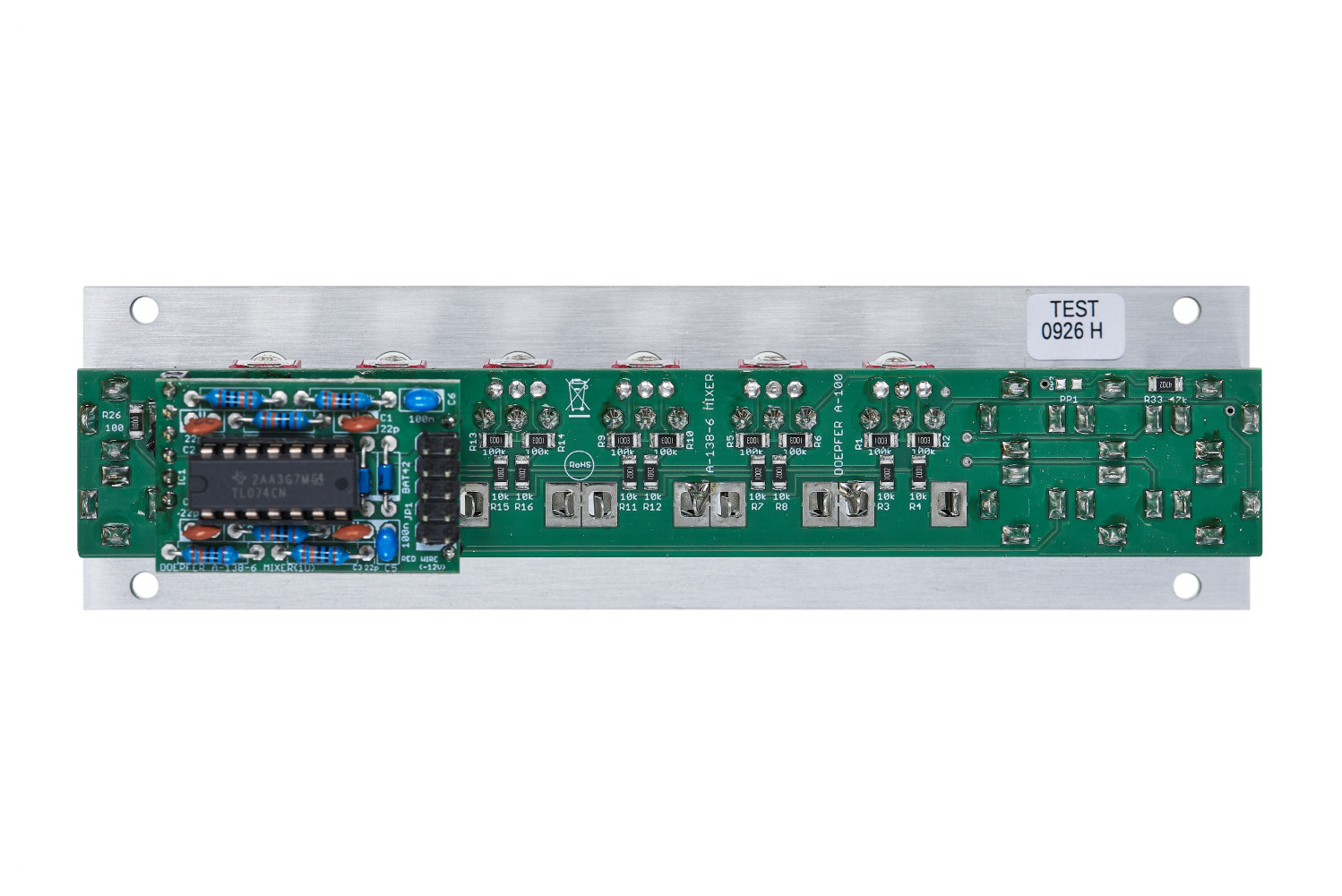

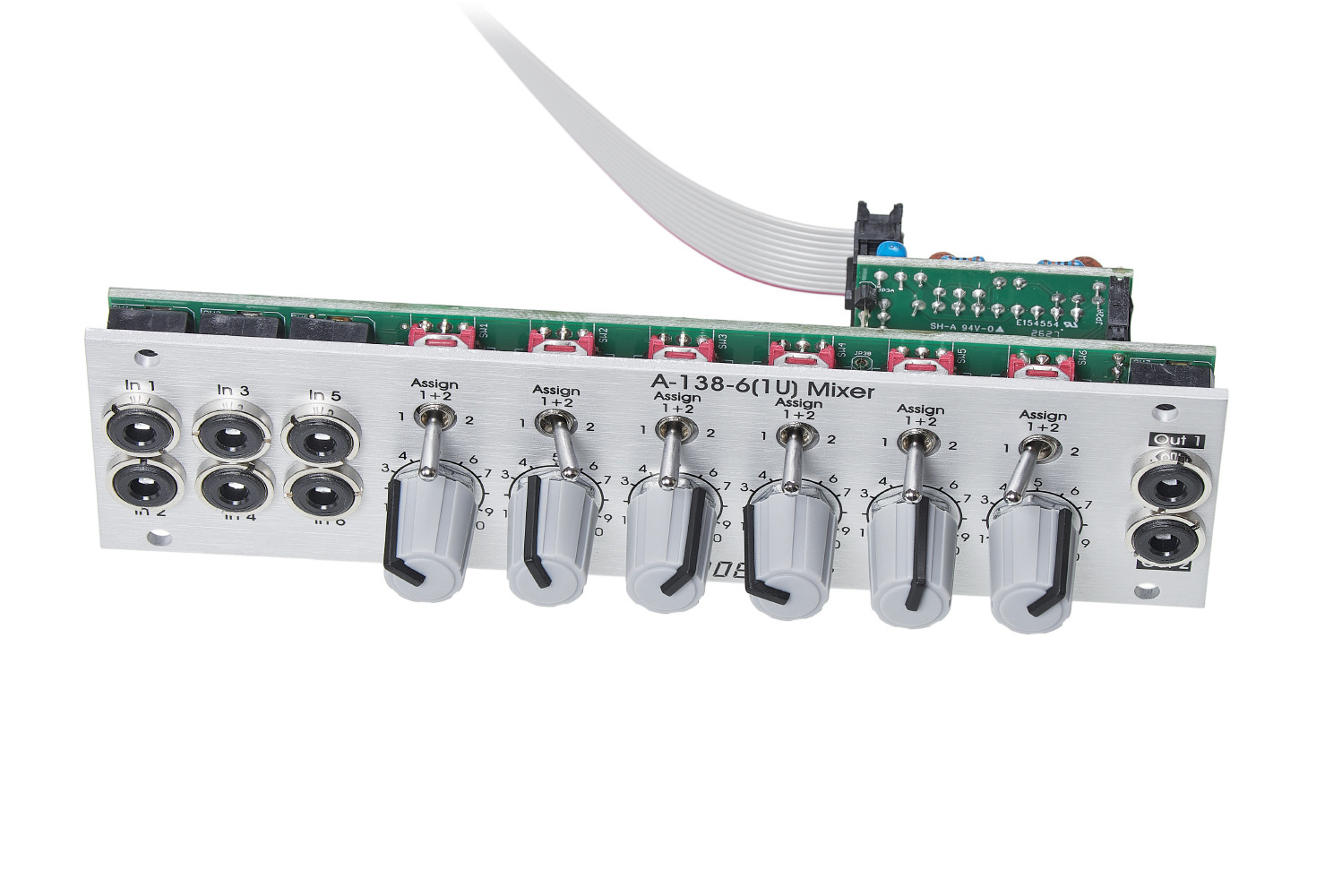

The A-138-6 (1U) module is a mixer with as many as 6 inputs and the ability to route each input to one of the two outputs or to both outputs.
This means you can also use the module as two mixers, each with three channels, or with 2 and 4 inputs, and so on - so the A-138-6 offers great flexibility and can be used in a variety of creative ways.
Features:
- 6 inputs, 6 level controls with linear response
- 6 toggle switches (Assign) for assigning each input to either of the two outputs
- 2 outputs (Out 1 and Out 2 jacks)
- Toggle switches: Left = Output 1, Center = Both outputs, Right = Output 2
- All input and output jacks are monophonic
