L-1 - Nuvistor VCA
€365.00
Net: €306.72
Pre Order
| U | 3 |
| HP | 10 |
| +12V | 7 |
| –12V | 123 |

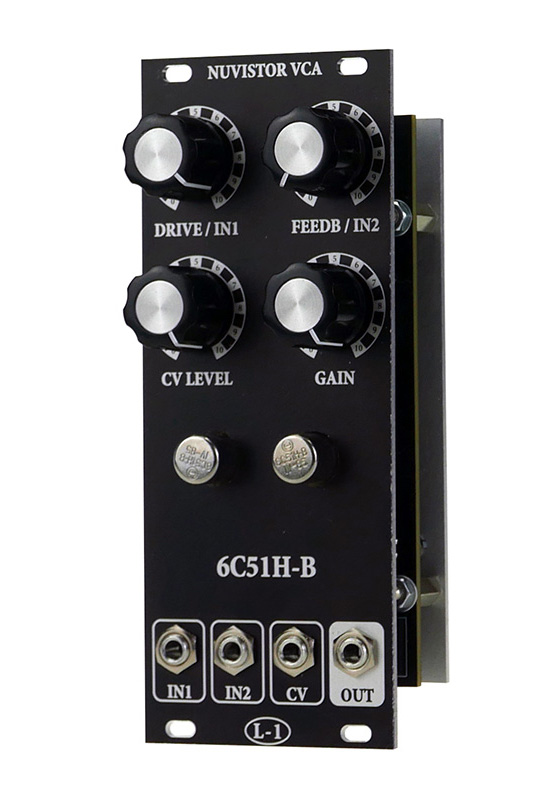

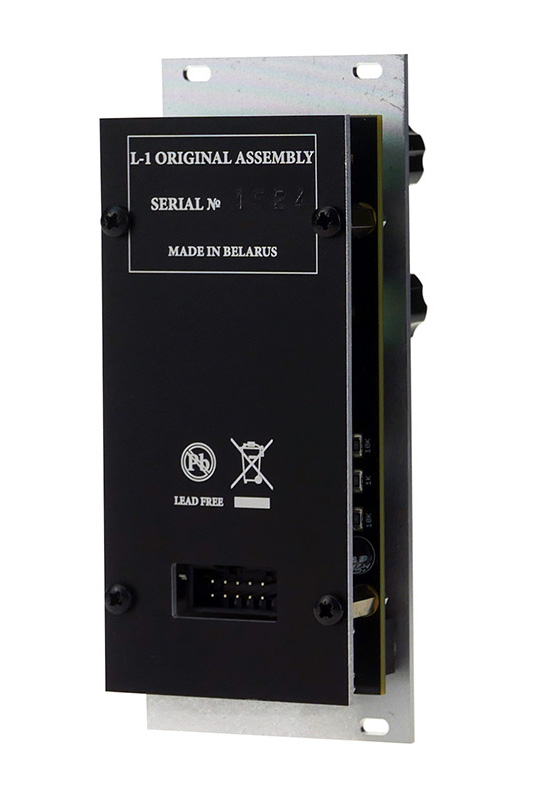

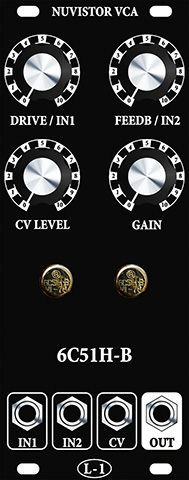

L-1 Nuvistor VCA — Nuvistor VCA with Drive, Saturation and Feedback
The Nuvistor VCA is an analogue VCA built around vintage Soviet 6C51H-B nuvistors. These miniature vacuum tubes give the circuit a distinctly coloured response, ranging from relatively gentle amplification to strong saturation and distortion.
Two audio inputs are provided, with the second normalled as a feedback path when left unpatched. Drive, Gain and Clean/Distortion modes make it possible to use the module as anything from a coloured VCA to a much more aggressive distortion and waveshaping stage.
Features:
- Analogue VCA based on Soviet 6C51H-B nuvistors
- Nuvistor tube amplification
- Two audio inputs
- Normalled internal feedback path
- Drive control
- Gain control
- CV control over amplitude
- Clean and Distortion operating modes
- Suitable for VCA duties, saturation and distortion
- Stronger coloration available through internal feedback
